Innovating Safety & Productivity for the Corrosion Control Industry

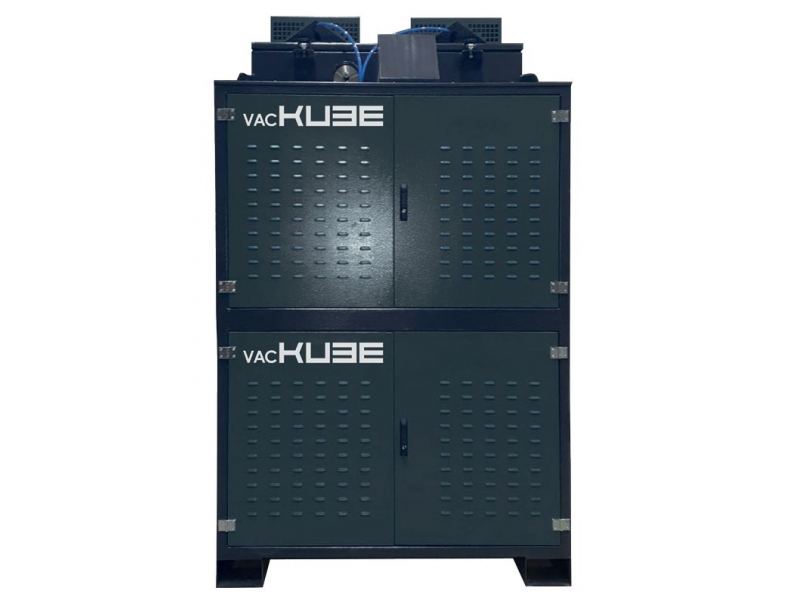

VacKUBE High Performance - Series 2

Portable Abrasive Vacuum Recovery Systems
The system is used for abrasive recycling, storage, transportation and cleaning of existing abrasive. It is a specially designed system with cheap, efficient and low maintenance cost.
The vacuum machine design is based on the pneumatic transport system. Designed for all abrasive types with abrasion-resistant suction hose, it uses high-speed airflow and transmits the collected The vacuum machine design is based on the pneumatic transport system. Designed for all abrasive types with abrasion-resistant suction hose, it uses abrasive to the cyclone silo. Abrasive and other impurities that are unusable in boiler, which can be used after the separation is provided.
The vacuum machine is custom made and the sound value is 85 decibels. Portable Abrasive Vacuum Recovery Systems have become indispensable tools for industrial operations. Offering both economic and environmentally friendly solutions, they assist businesses in achieving sustainability goals while improving operational efficiency.

Guaranteed Quote
within 48 Hours

Request a Quote

• Cost-Effectiveness
• Effective Recycling
• Easy Portability
• Low Maintenance Requirement
• Environmentally Friendly
Model KUBE-V37 KUBE-V55 KUBE-V75 KUBE-V90
Recovery per hour (1–5 m) 7–9 ton/h 12–14 ton/h 14–16 ton/h 17–20 ton/h
Recovery per hour (6–10 m) 3–6 ton/h 9–11 ton/h 11–13 ton/h 14–16 ton/h
Recovery per hour (11–15 m) 2–5 ton/h 6–8 ton/h 8–10 ton/h 11–13 ton/h
Recovery per hour (15–25 m) 1 ton/h 3–5 ton/h 5–7 ton/h 8–10 ton/h
Engine Power 30 kW 55 kW 75 kW 90 kW
Dust Filter Cartridge Filter Cartridge Filter Cartridge Filter Cartridge Filter
Quantity of Cartridges 2 2 4 4
Filter Area 42 m² 42 m² 84 m² 84 m²
Filter Cleaning System Jet Pulse Jet Pulse Jet Pulse Jet Pulse
Product Code Description Price
POA
