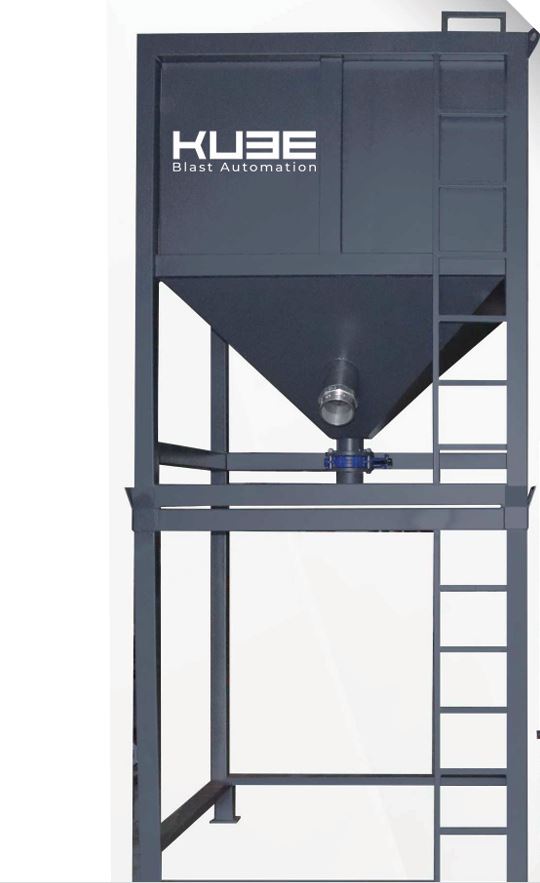

VacKUBE High Performance - Series 1

Recovery System
The system is used for the needs of pneumatic abrasive recycling, stock, transportation and cleaning of the existing abrasive. It is a specially designed system with cheap, efficient and low maintenance cost.
General Components of The Machine
• Blower (Aerzen- Germany)
• Electric Motor (Omega le3-New Generation)
• Filters
• Electrical Control Panel (Schneider Ip55)
• Safety Valve pulleys
• Belts
• Self Cleaning Flaps
• 3-Way Valve
• Diaphragms
• Temperature Stop Sensor
• Pressure Gauges
• Vacuum Filter
• Dust Drain Cover And Gaskets
• Blower Oil

Guaranteed Quote
within 48 Hours

Request a Quote

Name:

Company Name:

Email Address:

Telephone:

Product Name:

Quantity Required:

Comments:

• Convenient design
• Efficient cold air outlet socket up to 55kw
• High protection cylindrical silo
• Fully insulated body
• Easy to clean exhaust
• Dust-free filter cleaning feature level sensor
• Modular exhaust system

• High pressure dust collector box • 85dB operation sound in line with European standards
• Easily replaceable dust box

Area of Usage
• Sandblasting rooms,
• Blasting halls,
• Shipyards,
• Building site,
• Facilities which make the blasting applications before the painting

Specifications	KUBE-18,5	KUBE-30	KUBE-37	KUBE-55	KUBE-75	KUBE-90
Pmot (kW)	18.5	30	37	55	75	90
Pk (kW)	14.2	20.3	27.8	48.1	58.4	78.1
P (Ton/h)	1.2	2.4	3	6	8	9.5
NM (RPM)	2930	2945	2945	2965	2970	1480
T² (°C)	70°C	67°C	67°C	66°C	65°C	67°C
Q1 (m³/min)	12.6	18.2	18.2 / 25.7	42.7	42.7 / 54.6	54 / 72
Blower (Aerzen)	15L	25S	25S / 30L	50L	50L / 60S	60S / 80L
Filter Quantity	8	8	8	12	18	24
Inlet - Outlet	3″	4″	4″	5″	6″	6″
Silo Volume (m³)	1.1	1.7	1.7	4	4	5
Start - Stop	Star-Delta	Star-Delta	Star-Delta	Star-Delta	Star-Delta	Star-Delta
Recycling Rate	1.2	2.4	3	6	8	10
