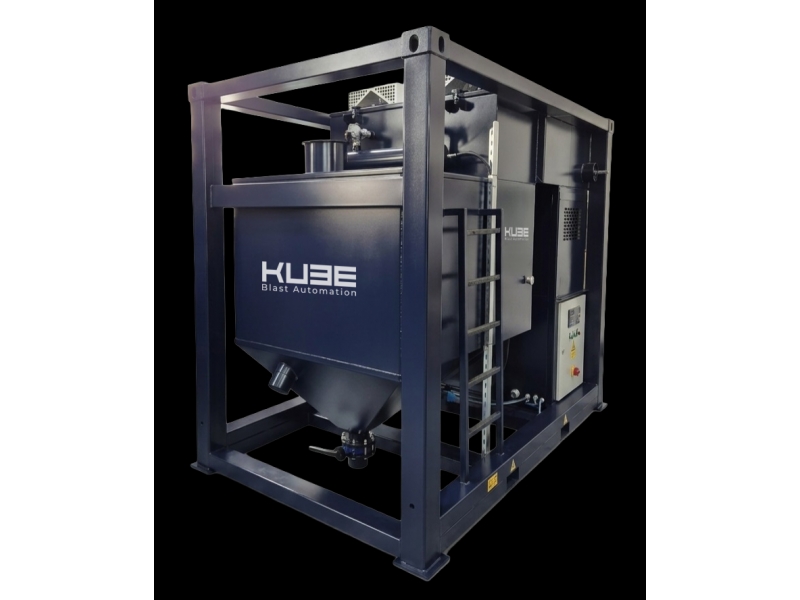

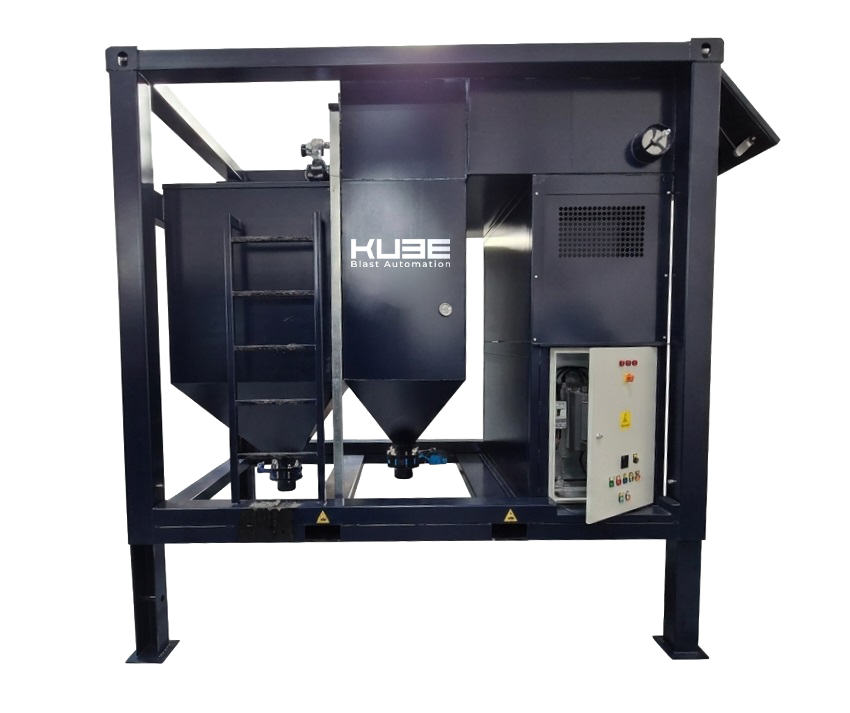

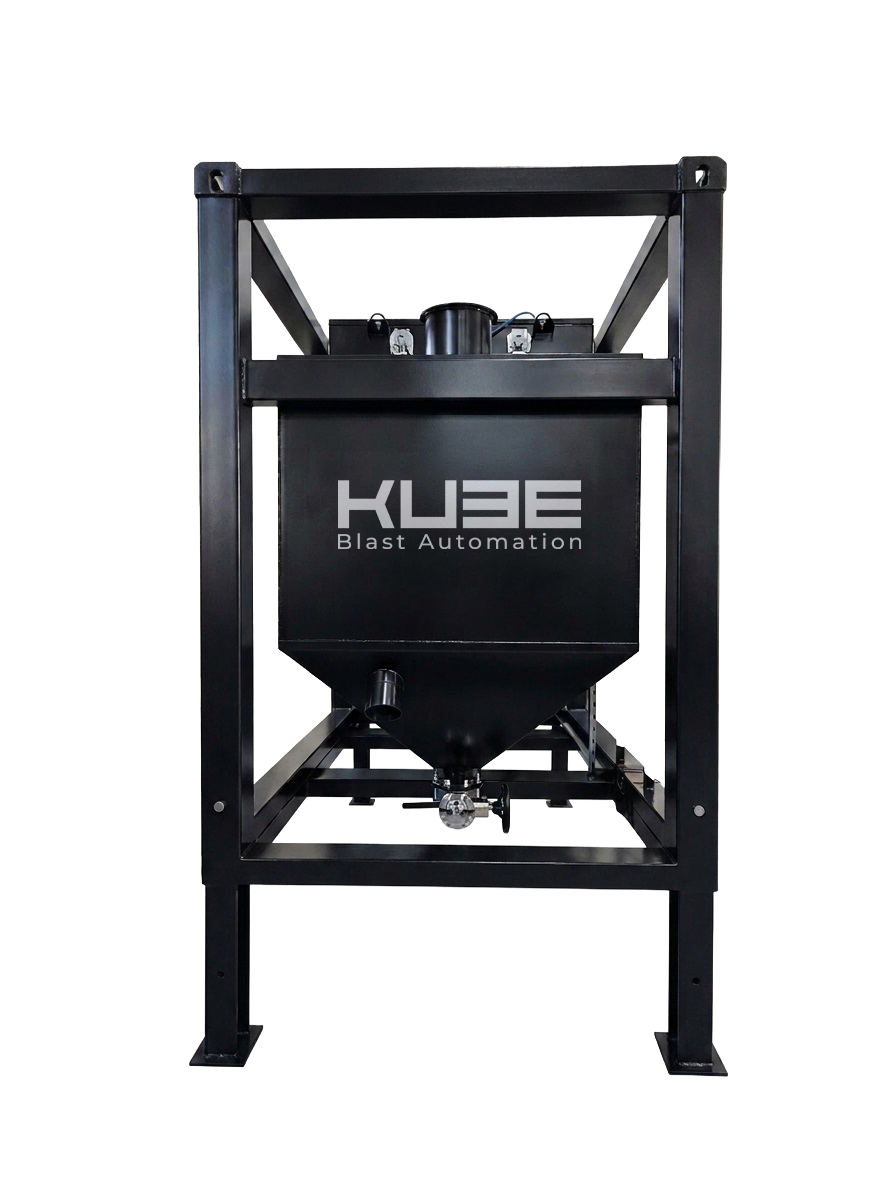

VacKUBE COMBI ABRASIVE RECOVERY SYSTEM

The system is used for the needs of pneumatic abrasive recycling, stock, transportation and cleaning of the existing abrasive. It is a specially designed system with cheap, efficient and low maintenance cost.
Area of Usage
1.8 m3 Silo
8 Vacuum Unit (55 kW or 75 kW)
Pneumatic Actuator Valve
Butterfly Valve
Adjustable Legs
Filter Area
Pulse Jet Valve

Guaranteed Quote
within 48 Hours

Request a Quote

It consisting of: • 55kW or 75kW Suction Unit • 1,8m3 Vacuum Silo • Extension legs(+80cm) with pins • Pulse Jet valve • Air tank with Regulator to feed pulse jet valve and butterfly valves, • Pressure safety Interlock • Pneumatic Actuator Valve for Dust discharing • Butterfly valve for Abrasive Discharging
VC Series Specifications
Parameter VC 55 VC 75
Recovery Rate (t/h) 4 - 8 5 - 10
Electric Motor (IP55 Class F) 55kW 75kW
NG (rpm) 2965 3710
NM (rpm) 2965 2970
Vacuum Producer (AERZEN Blower) GM 50L GM 50L
Q1 (m³/min) 42.7 54.6
t2 (°C) 66 65
Suction Distance (recommended) 40m 50m
Max Distance (horizontal) 80m 100m
Max Distance (vertical) 20m 25m
Cartridge Filter Quantity 4 pcs 4 pcs
Filter Surface (m²) 40 40
Start-Stop Method Star-Delta Star-Delta
Max Noise Level (dB) 85 85
Dimensions (mm) 3225 × 1900 × 2790 (+80) Same
Weight (kg) 3400 3500
Vacuum Silo 1.8m³ 1.8m³
Electrical Supply
380V-50Hz / 440V-60Hz / 380V-60Hz
Protection
Wrong Phase / High Temperature / Overload / Dust Level
Warranty
1 year against defects in materials and workmanship
