EnduraSPRAY ESPC-900 Internal Pipe Coater

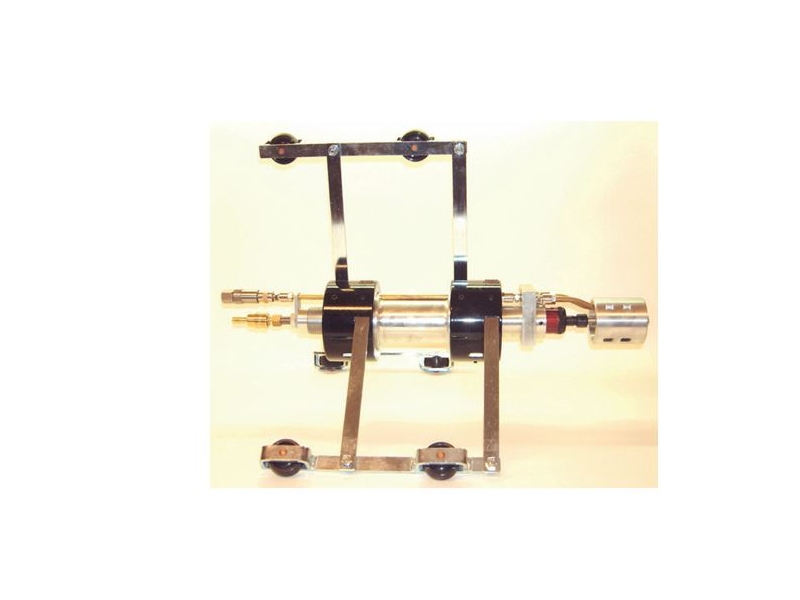

Product Code: EQ6-2512 Diameter range 12” (Ø 300mm) to 35” (Ø 900mm) The ESPC-900 is designed to coat the inside of pipe or tubing with internal diameter from 12” to 35” or Ø300mm to Ø900mm. The machine has a rotating head that creates a blast pattern of a circular 360° against the surface. Controlling the paint flow is done by a standard spray-tip TN-SSTC-6. This ESPC-900 is manually pulled through the pipe at a predetermined speed based on paint film thickness and type of coating. Generally, any type of coating may be used in this tool that can be airless sprayed. To obtain the best possible production, one man should operate the paint spray gun while another pulls the tool through the pipe or tubing. Centring carriage The carriage fits to the ESPC-900 as one assembly. It’s consists of two collars, three two wheel roller bars and four sets of centering legs (6 legs p/set).

Guaranteed Quote
within 48 Hours

Request a Quote

Name:

Company Name:

Email Address:

Telephone:

Product Name:

Quantity Required:

Comments:

Technical Specifications

Pipe I.D	Centring legs Ø	Length leg
10”-12”	210 mm-260 mm	12 cm
12”-17”	260 mm-380 mm	19 cm
17”-25”	380 mm-580 mm	29 cm
25”-35”	580 mm-890 mm	46 cm

Product Code	Description	Price
EQ6-2512	EnduraSPRAY ESPC-900 Internal Pipe Coating System - Includes 1.07mm Spray Tip	POA

EnduraSPRAY ESPC-900 Internal Pipe Coater

Request a Quote

What We Do

Information

Get In Touch

Your Trusted Partner

EnduraSPRAY ESPC-900 Internal Pipe Coater

Request a Quote

Related Products

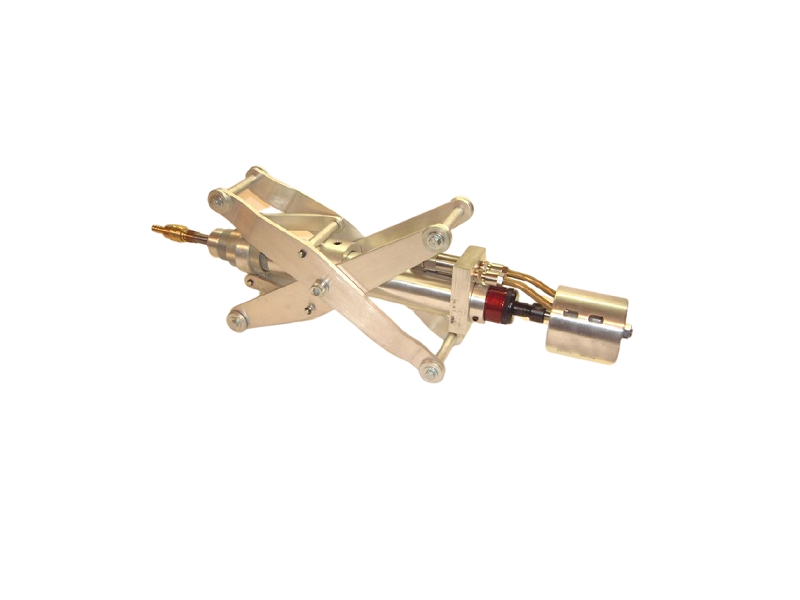

EnduraSPRAY ESPC-300 Internal Pipe Coater

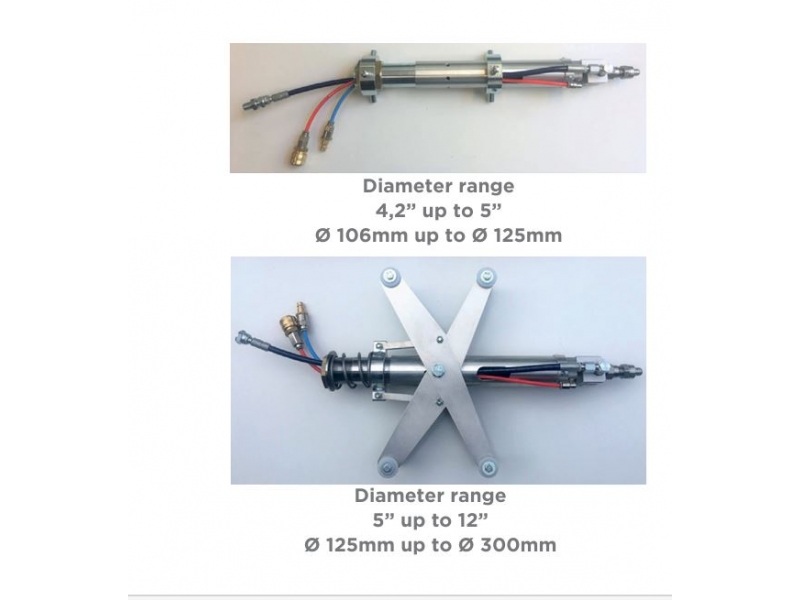

EnduraSPRAY ESPC-80/300 Quick Stop Internal Pipe Coater
