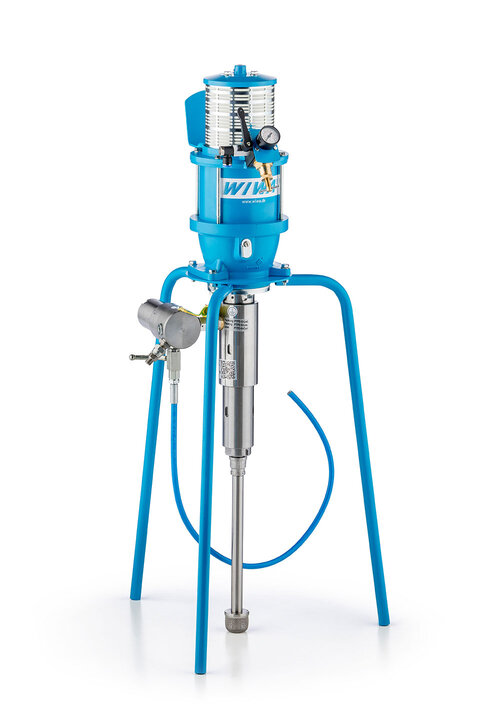

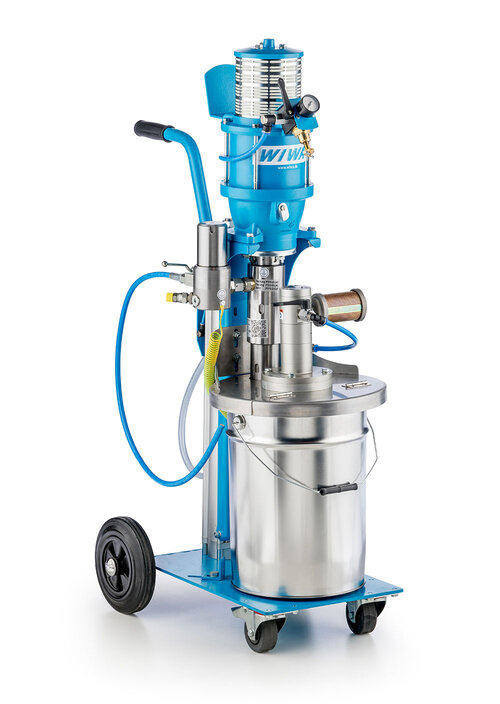

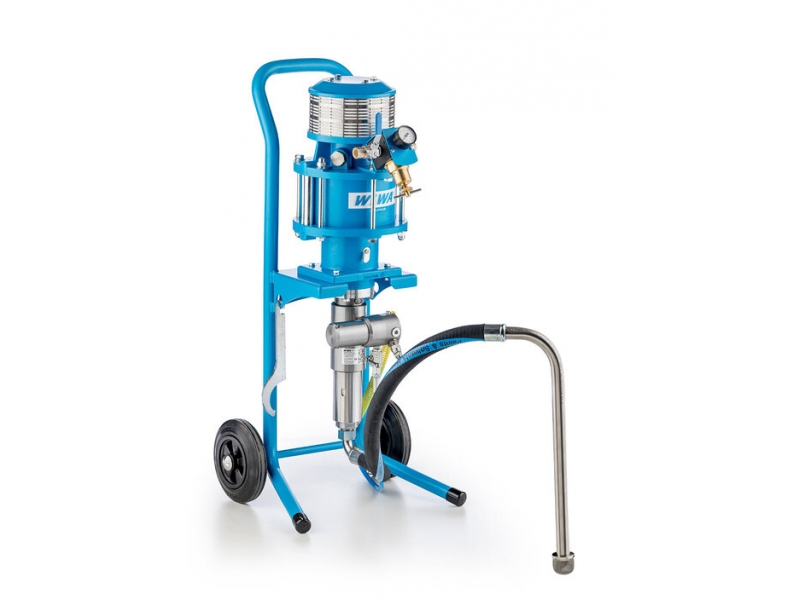

WIWA Phoenix GX Series Pneumatic Paint Pump

Product Code: EQ5-6125 WIWA PHOENIX GX - the new high-performance multipurpose device for both timber and steel coatings. The WIWA PHOENIX GX series is a versatile and high quality pump for almost any application. Available with many optional features allowing you to personalise the configuration to suit your operational requirements e.g. hopper feed, manual/auto agitators, heaters, fixed suction inlets, wall mounts, lift carts etc. This pump can be either be used as an airless system or as an air combi system for airless air assisted functions. The latter is especially useful for finer coatings and lacquers, often used in automotive and timber industries. Hot spray attachments can be installed to the pump to achieve faster drying times and smooth aesthetic finishes. Coating Materials - primer, spray filler, sprayable lacquers and paints, two-component and tar epoxy paints (highly viscous and coarse pigmented), textured paint, hammer finish, zinc dust paints, anti-rust and iron mica paints, low-solvent and solvent-free paints, pickling, water-based paints, clear coats and thick-layer glazes.

Guaranteed Quote
within 48 Hours

Request a Quote

TECHNICAL DATA
WIWA PHOENIX GX
Model
105030
Model
140053
Model
105018
Model
140032
Model
140020
Model
200042
Model
200065
Pump capacity per double stroke (cm³) 4343727211111172
Pressure ratio 30:153:118:132:120:142:165:1
Max. output at 60 double strokes (l/min / gpm) 2.6 / 0.72.6 / 0.74.3 / 1.14.3 / 1.1 6.7 / 1.86.7 / 1.84.3 / 1.1
Max. air inlet pressure (bar / psi) 8 / 1168 / 1168 / 1168 / 116 8 / 1168 / 1167 / 101
Max. operating pressure (bar / psi) 240 / 3480424 / 6149144 / 2088256 / 3712 160 / 2320336 / 4873455 / 6599
Model Order No. Order No. Order No. Order No. Order No. Order No. Order No.
PHOENIX GX Elevator 666589666591666590663944 666592666559666593
PHOENIX GX Tripod 667916667923667920667926 667929667934667931
PHOENIX GX Wall bracket 667919667925667922667927 667930667935667933
PHOENIX GX Feed hopper 667918--- ---
Product Code Description Price
EQ5-6125 WIWA Pheonix GX Series Pump GX140053 (53:1) POA
