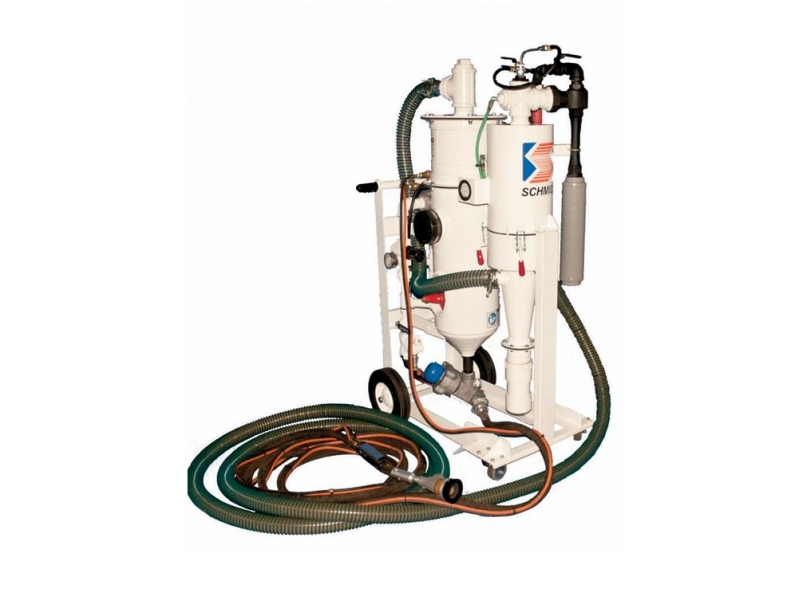

The miniBRS™ System

The miniBRS™ system is a compact and easily maneuverable abrasive blaster that blasts and recovers spent abrasive, contaminants and dust in the same step, eliminating the need for containment. It can also blast or vacuum separately for increased versatility. Unlike other systems on the market, the miniBRS has an ergonomic design, a lightweight yet durableblast head, and smaller diameter, lighter weight hoses that are sized to match the system.
The new blast/vacuum head features a 40% larger blast pattern, an ultra-comfortable trigger-style deadman control that allows one-handed start/stop and the ability to blast high-temperature surfaces, using an optional adapter/brush. Blast and recover at up to 200 feet away from the unit. It can operate on just a 185 cfm compressor.

Guaranteed Quote
within 48 Hours

Request a Quote

Name:

Company Name:

Email Address:

Telephone:

Product Name:

Quantity Required:

Comments:

Features
Technical Specifications

• Quiet vacuum eductor
• New palm button actuated air pulse for quick and easy cleaning of dust collector filter cartridge
• New blast and vacuum head with 40% larger blast pattern (or greater with adapters/nozzles) significantly improves productivity
• New trigger-style deadman control makes operation even more comfortable and allows one-handed operation
• High-temperature blast head option allows for blasting of high temperature surfaces (up to 500 °F)
• Ease of cleaning out the dust collector filter with new automatic air pulse system
• Improved muffler to reduce noise level by close to 10% (from 110db to 96db)

• 150 psi-rated, 0.3 cu. ft. pressure vessel with integral media screen
• Blast pressure regulator
• 75 cfm eductor (pneumatic vacuum pump) / Optional 100 cfm eductor available for increased suction
• Airwash reclaimer
• Secondary cyclonic dust separator
• Dust collector with polyester filter cartridge
• Differential pressure gauge on the dust collector to alert operator to clean filter
• Palm button air pulse for dust collector filter cleaning
• 25 ft. by “ in. blast hose assembly
• 25 ft. by 2 in. vacuum hose
• Blast and recover head assembly with No. 3 or No. 4 blast nozzle
• Teravalve XL™ remote control abrasive metering valve (tungsten carbide sleeve)
