Schmidt Thompson II Valve/II XL Valve

The Schmidt Thompson Valve II (TVII) is the blast industry’s leading performance valve providing incomparable quality and durability. Engineered to provide maximum durability and extended life, the TVII is normally a closed, self sealing abrasive metering valve with quick, smooth response to either pneumatic or electric deadman controls.
Schmidt valves are proven to use significantly less abrasive and are engineered to maximise blasting productivity and reduce downtime. Internal Sleeve’s are available in tungsten carbide, tungsten carbide slotted, urethane, stainless steel or tungsten carbide multiport, large bore.

Guaranteed Quote
within 48 Hours

Request a Quote

Name:

Company Name:

Email Address:

Telephone:

Product Name:

Quantity Required:

Comments:

Improved virtual position indicator(VPI) provides a visual presentation of abrasive flow setting; metering is simple to set and maintain.
Control system signal ports relocated for easy access when valve is installed.
Heavy duty castings with improved life in high wear areas.
Redesigned piston improves spring stability, providing quick and smooth actuation and extended spring life.
Upgraded cleanout plug has straight threads and face seal for an air tight seal; no pipe tape necessary.
Upgraded plunger seal design reduces friction for quick response.
Advanced sleeve design preventing dust migration and mechanical binds, significantly extending life.
Unique sleeve design allows easy removal of sleeve and plunger for inspection and replacement.

Optional Thompson Valve II XL(TVII XL) external threaded output sizing:

TVII XL TC. 1" output
TVII XL TC. 1.1/4" output
TVII XL TC. 1.1/2" output
TVII XL TC. 1.1/4" output including slotted sleeve
TVII XL TC. 1.1/2" output including slotted sleeve
TVII XL TC. 1.1/4" output including multiport sleeve rng III
TVII XL TC. 1.1/2" output including multiport sleeve rng III

Optional replacement spare parts:

Piston Seal (Pack of 10)
Plunger Nut 1/2" (Pack of 4)
Plunger Seal black (Pack of 10)
Knob
Spring
Piston
Plunger
Seat
Base, 1.1/2" NPT
Breather Vent (Pack of 4)
TVII O-ring carbide sleeve (Pack of 10)
TV Vibration disc (Pack of 10)
TVII XL Cap
TVII XL Cylinder
TVII XL Tungsten Carbide Sleeve (includes O-ring and internal wipers)
TVII XL Body with sleeve pin
TVII XL Cap Gasket (Black)
TVII XL Cleanout Plug with O-ring
TVII XL Cleanout Plug O-ring (Pack of 10)
TVII XL Hex Head Flange Bolt (Pack of 4) 3/8" UNC x 1.1/4"
TVII XL Hex Head Flange Bolt (Pack of 4) 3/8" UNC x 4 3/4"
Replacement Parts Kit TVII XL Carbide, seals only
Replacement Parts Kit TVII XL Carbide

TVII Code	TVII XL Code	Description
EQ3-2301	EQ3-2331	TVII/TVII XL 1 1/4" Tungsten Carbide Valve
EQ3-2302	EQ3-2332	TVII/TVII XL 1 1/2" Tungsten Carbide Valve
EQ3-2304	N/A	TVII 1 1/4" Urethane Sleeve Valve
EQ3-2306	N/A	TVII 1 1/4 Replacement Tungsten Sleeve
EQ3-2307	N/A	TVII 1 1/4 Replacement Urethane Sleeve
EQ3-2308	N/A	TVII Urethane Repair Kit
EQ3-2309	EQ3-2333	TVII/TVII XL Tungsten Repair Kit

Product Code	Description	Price
	Thompson II XL Valve	POA

Schmidt Thompson II Valve/II XL Valve

Request a Quote

What We Do

Information

Get In Touch

Your Trusted Partner

Schmidt Thompson II Valve/II XL Valve

Request a Quote

Related Products

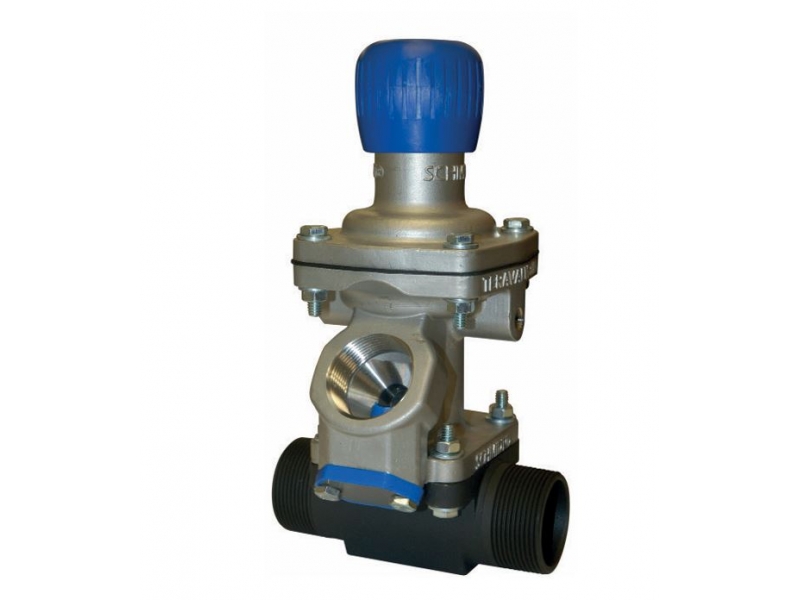

Schmidt Tera Valve XL
