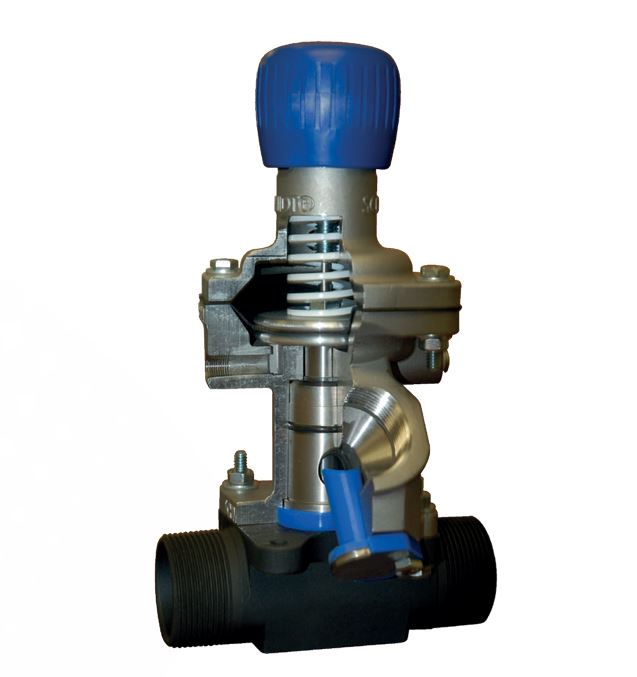

Schmidt Tera Valve XL

The new Schmidt Tera Valve abrasive metering valve is revolutionary in its ability to provide high performance, pressure hold blasting at a cost effective price point. The TeraValve is diaphragm activated, simplifying overall operation and maintenance.
The new Schmidt extended life (XL) technology is incorporated for durability and long life, even when the valve is used with harsh abrasives. Its compact size fits easily onto low clearance blast pots or blast cabinets without modification, making it easy to convert automatic blowdown pots to a more efficient and productive pressure hold system. Install a Schmidt® TeraValve™ Conversion Kit on your blast pot and immediately see the productivity, abrasive efficiency and low maintenance benefits of pressure hold versus traditional non-pressure hold blast pots”

Guaranteed Quote
within 48 Hours

Request a Quote

Name:

Company Name:

Email Address:

Telephone:

Product Name:

Quantity Required:

Comments:

• Compact design: Easily retrofit MicroValve® pots without vessel modification.
• Upgrades pressure hold blast cabinets.
• Utilizes the Schmidt® XL™ technology to better withstand aggressive (Aluminum Oxide)/ dusty abrasives.
• Diaphragm actuated valve is highly dust tolerant
• Longer life than the classic Thompson® Valve and TVII™.
• Disassemble easily even after extended use
• Fine-tuned, precise abrasive metering.
• Includes our best performing cleanout port.
• Rugged, corrosion-resistant stainless valve body.
• Virtual Position Indicator (VPI™) provides a visual representation of abrasive flow setting so metering is simple to set and maintain.

TeraValve XL Pressure Hold System Conversion Kit:

Install a Schmidt TeraValve Conversion Kit on your blast pot and immediately see the productivity, abrasive efficiency and low maintenance benefits of pressure hold versus traditional non-pressure hold blast pots
Pressure hold versus Non-pressure hold - On pressure hold systems, the blast pot remains pressurized when the deadman is released, the abrasive and air blast air supply are turned off, leading to quieter and smoother operations and less wear and tear on components. On non-pressure hold systems, the blast pot completely depressurizes each time the deadman is released. The blowdown is loud, and the cycling results in inefficient abrasive waste, delayed startup, and higher erosion and maintenance of components.
Kit includes TeraValve, Auto Air Valve, 55' twinline, G2 Deadman Handle and all fittings. Installs on any blast pot design in about 45 minutes.

Code	Description
EQ3-2380	3/4" Tera Valve Complete
EQ3-2381	1" Tera Valve Complete
EQ3-2382	1 1/4" Tera Valve Complete
EQ3-2383	1 1/2" Tera Valve Complete
EQ3-2384	Repair Kit
EQ3-2385	Tera Valve Repair Kit Seals Only
