Schmidt Accustrip Systems
Schmidt's Accustrip Systems are a line of air driven abrasive blasting machines specifically designed for delivery of nontoxic, nonhazardous and nonsparking sodium bicarbonate blast media
Designed for multi-purpose use, Accustrip Systems can be used for general maintenance, cleaning, degreasing, graffiti removal, depainting and other surface preparation applications, and their gentle but effective cleaning process is safe for use on virtually any surface including brick, limestone, concrete, granite, metal, glass and tiles.
Schmidt's Accustrip Systems feature a single regulator control system, large piping and media valve, which enhance reliability, performance and ergonomics.
The size/capacity of the unit (cu ft) is indicated by the number immediately preceding the SX designation. Schmidt's Accustrip systems are available in 11 XS, 12 XS and 13 XS models.
Guaranteed Quote
within 48 Hours
- Streamlined piping provides more efficient air usage and ease of maintenance
- Moisture separator, moisture eliminator and water trap pop-up valve keep blast media flowing smoothly. Optional AirPrep system (air dryer or aftercooler) available
- 45º cone provides optimum media flow
- Gauge console allows for easy monitoring of all blast parameters
Available in 11 XS, 12 XS and 13 XS models.
Also available with Thompson Valve II abrasive metering valve or ARMEX® Media Valve.

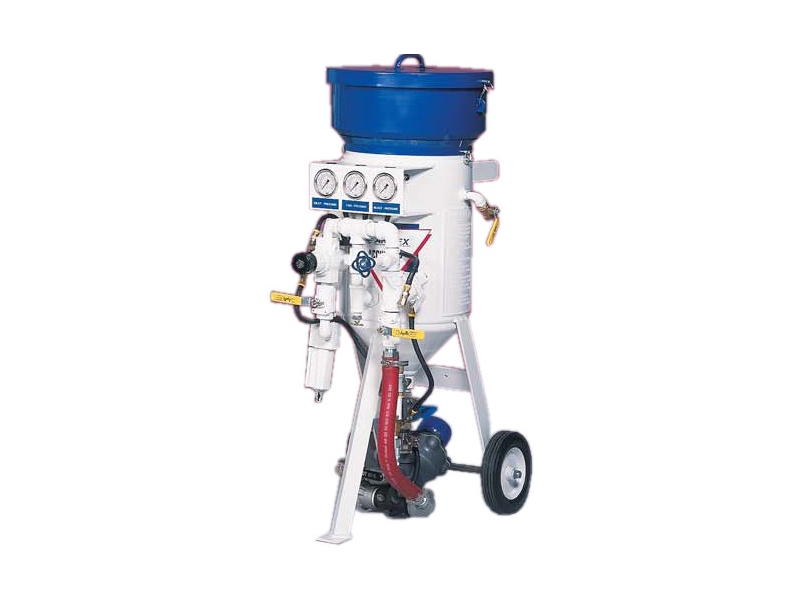

11 XS
- Vessel Volume: 1 cu ft
- Media Capacity: 50 lbs
- Piping System: 3/4"diameter
- Hose Assembly: 25', 5/8" ID blast hose**
- Blast Pressure: 30-90 psi typical
- Dimensions (L x W x H): 25" x 18" x 42"
- Weight: 130 lbs

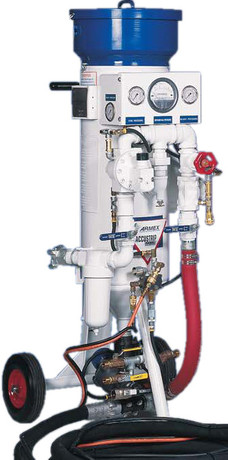

12 XS
- Vessel Volume: 2 cu ft
- Media Capacity: 100 lbs
- Piping System: 1 1/2" diameter
- Hose Assembly: 50', 1" ID blast hose**
- Blast Pressure: 30-90 psi typical
- Dimensions: 26"L x 26"W x 60"H
- Weight: 270 lbs

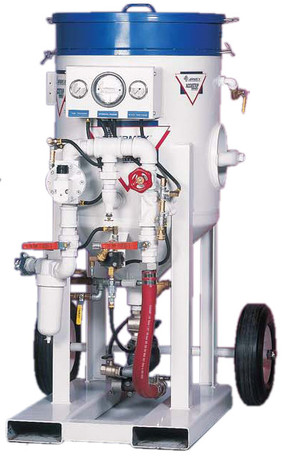

13 XS
- Vessel Volume: 3 cu ft
- Media Capacity: 200 lbs
- Piping System: 1 1/2" diameter
- Hose Assembly: 50", 1" ID blast hose**
- Blast Pressure: 10-125 psi typical
- Dimensions: 40"L x 36"W x 60"H
- Weight: 537 lbs
