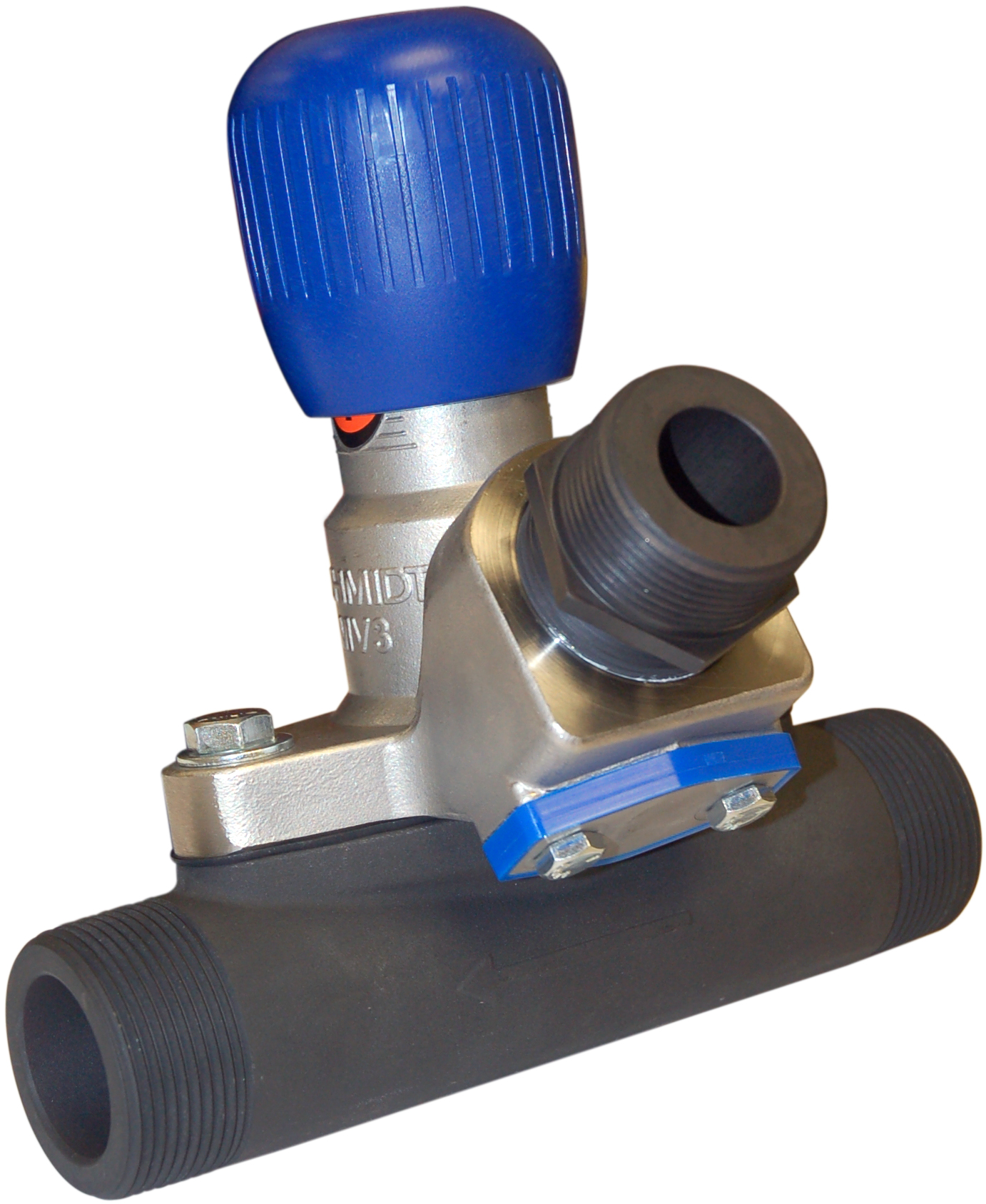

Micro Valve 3
Endurablast's range of valves are engineered to provide maximum durability and extended life. The Schmidt MV3 abrasive metering valve is part of the Endurablast range that we offer and is the newest innovation within the family of industry leading Schmidt abrasive metering valves. The MV3 offers the proven productivity and safety advantages that schmidt valves deliver to abrasive blasting operations through;
- Providing precise metering of abrasive
- A heavy duty valve providing extended service life
- An improved cleanout port
- Maintenance beng quick and easy compared to your standard micro valve
Guaranteed Quote
within 48 Hours
- Service life is extended by further enhancements including, stainless steel machined body, abrasion resistant steel base, thick rugged steel mounting nipple.
- Overall valve design increases the maintenance efficiency levels by controlling downtime while delivering precise control of abrasive flow.
- Flanged style cleanout provides easy access to and from the removal of debris.
- Virtual Position Indicator (VPI) under the knob allows for quick and consistent abrasive flow, to optimise productivity.
| Valve Features | Schmidt Micro Valve | Schmidt MV2 | Schmidt MV3 | MV3 Benefits |
| Body | Aluminium | Carbon Steel | Stainless Steel | Extends valve life, especially with aggresive media |
| Base/Nipple | Carbon steel | High strength hardened steel | High strength hardened steel | Extends valve life, especially with aggresive media |
| Bolt Holes | Not sealed | Sealed | Sealed | Eliminates air leaks around bolts |
| Knob | Pin-fastened | Integrated | Integrated | Simplifies assembly/disassembling |
| Media Connection | 1.1/4 Female NPT | 1.1/4" Male NPT | 1.1/4" Female NPT | Thick rugged steel mounting nipple (included) increases valve life |
| Abrasive Flow Rate | Normal | High | High | Flows more abrasive (up to 2x more, depending on media type) |
| Virtual Position Indicator(VPI) | No | Yes | Yes | Simple to set and maintain consistent media flow rate. |
| Knob Adjustment | Yes | Yes(Large) | Yes(Large) | Easy to use, more compact than other handle types. Large knob is easy to grip and adjust |
| Cleanout Port | No | Yes | Yes | Clear obstructions without removing/disassembling |
| Maintenance Access Req'd | Top, bottom | Bottom | Bottom | Easy Access, fewer components shorten rebuild maintenance time |
| Body Bolt | 5/16" x 3.1/4" | 3/8" x 1" | 3/8" x 1" | Simplifies assembly/disassembly |
MV3:
Body: Quality Stainless Steel
Base/Nipple: High Strength, hardened steel
Sleeve: Polyurethane
Inlet media connection: 1.1/4" NPT
Piping Sizes: 1.1/4", 1.1/2"
Length: 7.1/2"
Width: 6.3/4" - 7.1/2"
Height: 5"-5.1/2"
Weight: 7.85 lbs (8.5 lbs with the steel mounting nipple)
| Product Code | Description | Price | |
|---|---|---|---|
| Micro Valve 3 | POA |
